Carbon infrared emitter CIR® - for the efficient drying of water-based or aqueous coatings

Carbon infrared emitter

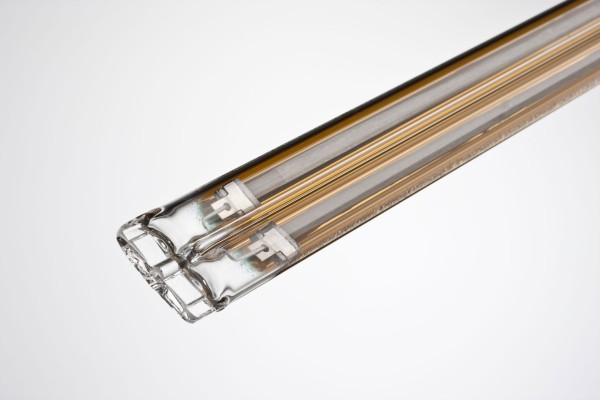

Noblelight carbon infrared emitters CIR® feature a unique design of the heating filament that combines the efficient radiation with very short response times in the seconds range. The unique twin-tube layout of the Noblelight carbon emitters (the "Golden 8") gives them higher radiation density and improved mechanical stability. Carbon infrared emitters are also available as round tube.

 Noblelight carbon IR emitters can be manufactured as complete IR systems, for example in Infradry dryers.

Your advantages

  • High-quality quartz glass for good transmission and thermal stability
  • Carbon heating filament with very short response time
  • Robust ceramic lamp base
  • Gold reflector for directed radiation and high efficiency
  • Twin quartz tube (the "Golden 8") for high stability and double power, available with different lengths

Technical data

Carbon twin-tube emitters IR emitters Carbon round tube IR emitters
Power 60 W/cm 30 W/cm
Max. heated length 5000 mm 1500 mm
Cross-section 34x14 mm 19 mm
Filament temperature 1200°C 1200°C
Wavelength 2 µm 2 µm
Max. power density 110 kW/m² 85 kW/m²
Response time 1 - 2 s 1 - 2 s
